Description
Underfloor Heating System PURMO ts14R – Dry Construction
The ts14 R dry building system was developed for applications in which conventional wet building systems with thermoconcrete or wet mortars cannot be used. On the one hand, this applies to renovations where the usual construction heights are minimal. 100-120 mm are not available or in buildings that can not take the weight of a liquid system of about 130 kg / m². But it is also used when things have to go fast.
With conventional wet building systems, it usually takes about 2-6 weeks after the application of the heat concrete before the floor work begins. With the ts14 R dry building system, you can start laying the finished floor immediately after laying it.

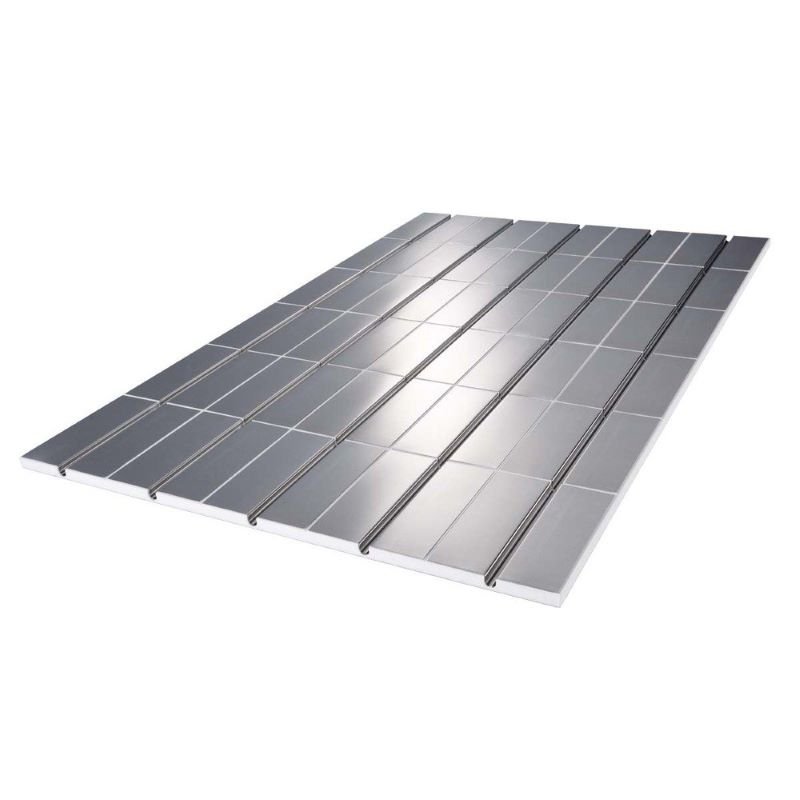

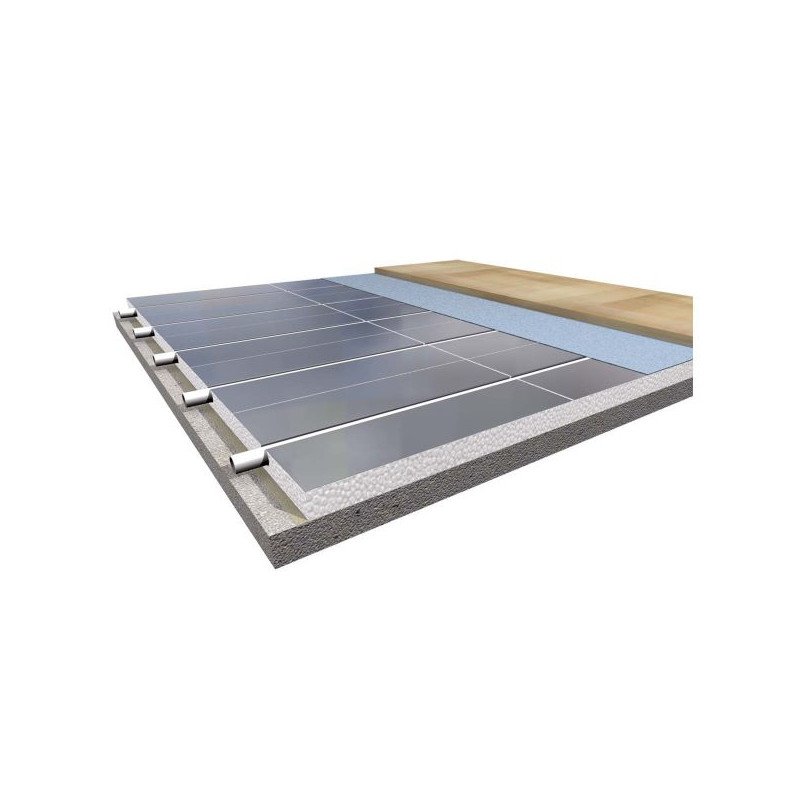

The ts14 R offers maximum flexibility to meet almost all the requirements of a renovation system. Unlike other drywall systems, it can be covered with tiles (with load-bearing plate) or parquet, for example. The base is the ts14 R shaped plate made of EPS 200, in which a heat-conducting aluminum foil is glued to the entire surface by the factory.
In combination with the 125 mm thickening, very high heat efficiency is achieved with low system temperatures. The load distribution plate can be used for statically sensitive floors. It is a fiberboard made of aluminum alloy with high compressive strength and good thermal conductivity. Purmo Therm PU filler compensates for uneven surfaces under the ts14 R. system
Therm PU is a granular expanded glass mixed with resin and is used as a leveling filler to create a flat surface. Unlike the usual plywood filling, it is sturdy and, thanks to the built-in thermal insulation, reduces heat loss downwards.
