Description

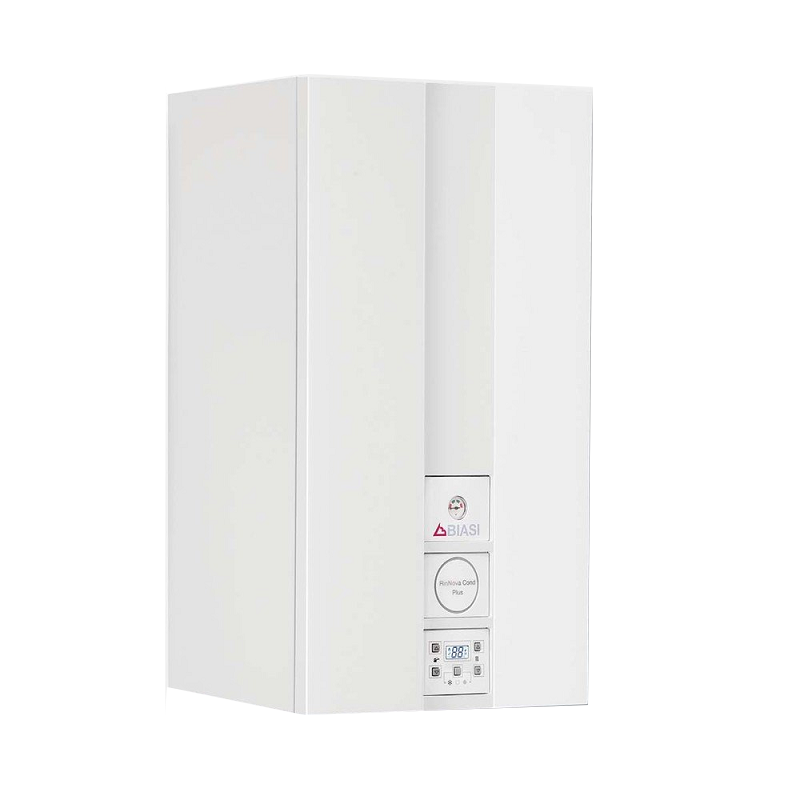

Biasi 22kW Gas Condensing Boiler
POWER: 7.5 – 33.5 kW
RinNova Cond Plus is the new series of wall-mounted condensing boilers BIASI. Excellent performance thanks to the new heating exchanger and ease of use thanks to the digital display control panel
Available in versions for heating and domestic hot water and only for heating the RinNova Cond Plus has a full range of features, combi models 20 and 30 kW and models 16 KW SV, in the same extremely compact dimensions (700 x 400 x 290 mm).
The RinNova Cond Plus has its strengths in the innovative heat exchanger, which is designed to deliver high performance, and the digital control panel, which is designed to communicate with the user in an easy and comfortable way.
Like all BIASI condensing models, the RinNova Cond Plus allows for maximum savings from climate control, based on the system in which the boiler is installed.
High yields (★★★★ according to Directive 92/42 EEC and D.lgs. 311/06)
Comfort in hot water (★★★ EN 13203)

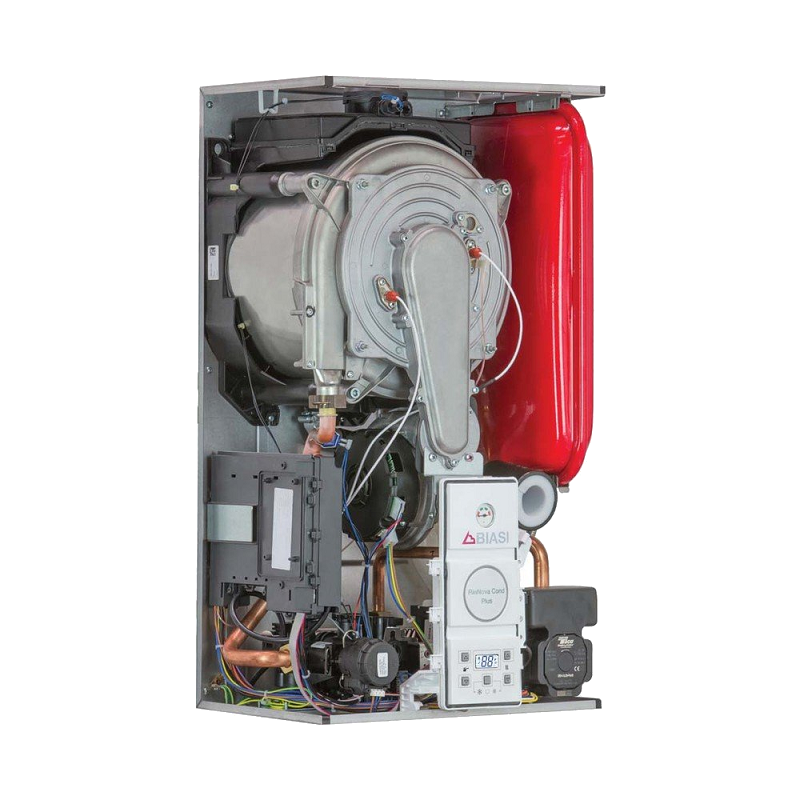

Primary stainless steel spiral condensing exchanger with steel coating for maximum corrosion resistance
Pre-mixing gas burner, made of stainless steel (class NOx 6)
Formulation 1: 5 methane and LPG
Stainless steel plate hot water exchanger
Expansion tank 7 liters
High efficiency pump with low energy consumption
Maximum power adjustable depending on the system
Degree of protection IPX5D
Installation in a partially protected place
Integration into solar systems using solar kits
Backlit digital control panel
Proportional pressure reading
Possibility to use a remote control and an external sensor.
